Vouchers
An herbarium voucher is a pressed, dried specimen of a plant that is attached to a sheet of paper. A label is also attached to the paper to identify the plant and to explain where, when and by whom the specimen was collected. The sheet is commonly 11.5 inches wide and 16.5 inches long. Plants larger than this size must be folded to fit, or if the are very large, only the portions essential to identify the plant are mounted. Vouchers of trees, for example, typically include a twig with leaves and buds, or the flowers and fruits.
How to make a herbarium voucher
The most common type of herbarium voucher is a pressed, dried plant specimen attached to a sheet of paper. The addition of a label containing information on the plant's location, habitat type, date of collection and name of collector completes the voucher. Presses for the drying of herbarium specimens can be purchased from a variety of biological suppliers, but a simple press can be made inexpensively. The following images demonstrate a common method by which herbarium.
Typically, collectors press the plants in newspaper. Some local "shopper" newspapers, etc may be nearly the correct size for this purpose. Regular newspapers can be cut to about 16 x 11 inches. The plants must fit in this size because they must fit on a standard sized sheet of paper in the collection . Specimens collected for vouchers must include plants or plant parts sufficient to reliably identify the voucher. For many plants that will require flowers and/or fruit, but for trees it is often possible to make a good voucher from mature leaves attached to a twig -- winter buds are also helpful and will be fully formed by mid to late July and extending throughout the next winter. September is a very good time to collect vouchers of many deciduous trees. As you gain experience in identifying the plants, you will learn what characters are necessary to identify them, and can therefore collect the vouchers accordingly. Many collectors choose to assign a unique collector number to each specimen, usually beginning with 1, 2, 3 etc. and continuing for their entire career. The number can then be used in your field notes to keep track of the data pertaining to each voucher, and that same number can be written on the newspaper in which the plant is pressed to keep the specimen connected to the information. Taking and keeping good field notes is essential for those working in natural resources fields. It has been my experience that the information may also be important years later and for purposes not initially intended. Most herbaria prefer to mount the vouchers themselves. We use a special kind of paper that is designed to last for a very long time and to resist changes in color and consistency of the paper. The glue is also chosen specifically for the making of herbarium vouchers and we print labels on archive-quality paper with permanent ink. Our preferred method is to receive each pressed and dried plant in the newspaper it was dried in, with the label or the label information on a separate sheet inside the newspaper. Fifteen or twenty such sheets can be stacked, and then sandwiched between two pieces of heavy cardboard and snuggly wrapped and tied with string, or by taping the edges of the cardboard securely together to hold the plants firmly and keep any parts from falling out. They can be mailed in this fashion, with several bundles together in a box if the number of plants is larger.
Click on an image for a larger view.
 |

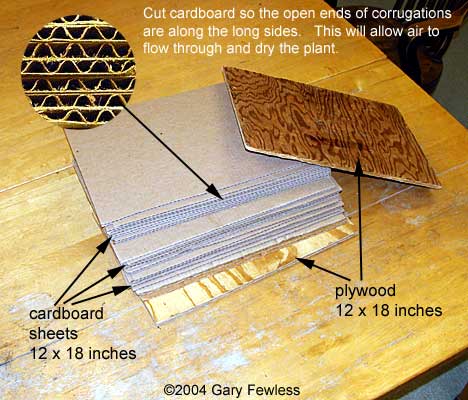

A simple press consists of 2 pieces of plywood and several pieces of cardboard, each of size 12 x 18 inches |
 |
Place one piece of cardboard on one of the pieces of plywood. Place one open sheet of newspaper on the cardboard and lay out the plant to be pressed. You may need to cut the newspaper to size. Take care to spread out the plant--once it is dry you will not be able to turn over or unfold the leaves. The dried plant will be glued to a sheet of paper later, so it is a good idea to turn over at least one leaf before drying so that an observer can see examples of both top and bottom of leaves after they are glued down. |
 |
Close the newspaper over the plant and check that you have identified the specimen. Typically each specimen is assigned a collector number in a notebook and that number is written on the newspaper in which the plant is pressed. More thorough information is recorded in the notebook for inclusion on the label that will accompany the voucher. |
 |
Cover the newspaper with another piece of cardboard. Then lay another sheet of open newspaper on the cardboard, lay out another plant, close the paper, add another cardboard, etc. until all plants have been processed. |
 |

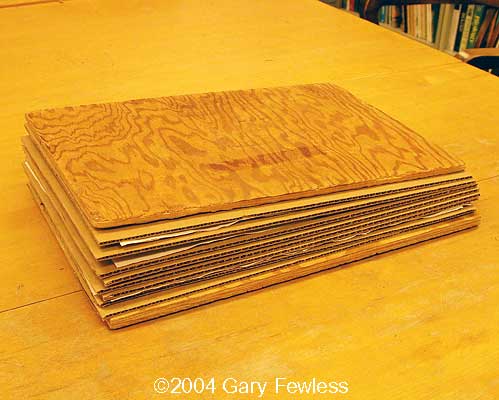

Place the second piece of plywood on top of the stack. |
 |

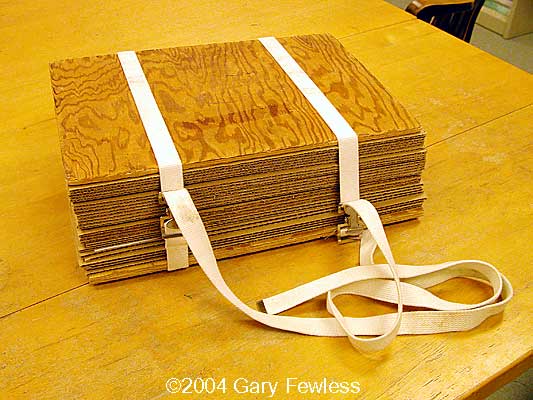

Use the straps to draw the stack of plywood and cardboard tight. |
 |
Place the press on edge over a heat source. Warm air rising through the holes in the cardboard will dry the plants. Once they are dry they will not decompose and they will not change shape. Any heat source can be used, keeping safety in mind. Obviously open flames are not an acceptable heat source.
|
